API 5L PSL1 SSAW ท่อ

Description

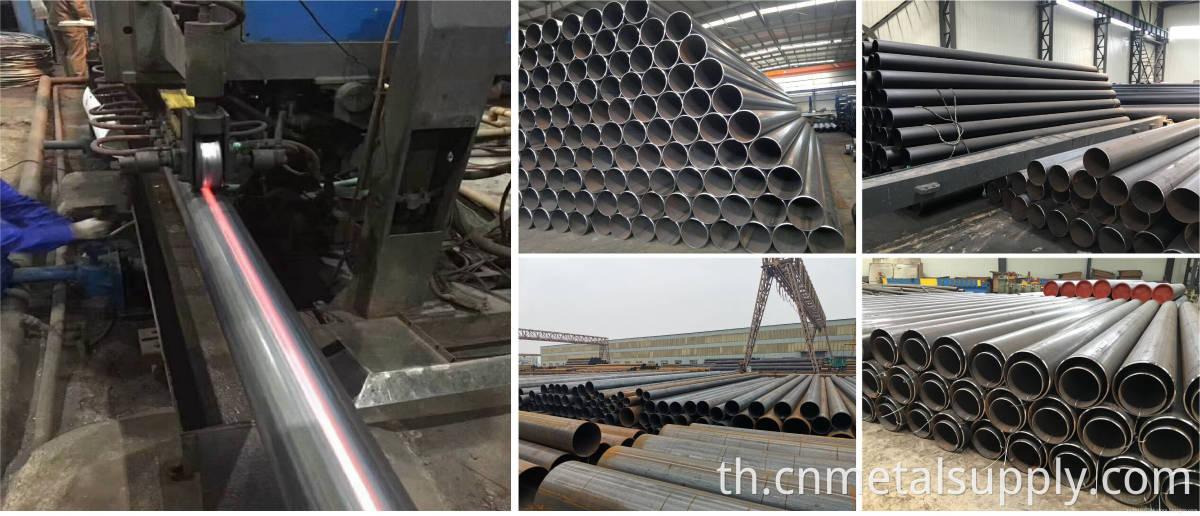

Spiral welded steel pipe, Straight seam welded steel pipe, Carbon steel tube, ERW steel tube, EFW steel pipe

Standards

API 5L ERW PSL1/PSL2, EN39, BS1139, BS1387, EN10255,

ASTM A53, A500, A36, A795, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793

Certificate

API 5L ERW PSL1/PSL2, API 5CT, CE, ISO

Material

Q195, Q215, Q235, Q275, Q295, Q345, S275, S355, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8

ASTM A53: Gr.A, Gr.B, Gr.C, Gr.D

API 5L: Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70

GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555

ASTM A252: Gr.1 Gr.2 Gr.3

Type

Spiral, ERW (Electrical Resistance Weld), EFW (Electric Fusion Welding)

Outside Diameter

6mm-2500mm

(1/8 inch, 1/4 inch, 1/2 inch, 3/4 inch, 1inch, 1 1/4 inch, 1 1/2 inch, 2inch, 2 1/2 inch, 3inch, 3 1/2 inch, 4inch, 5 inch,

6inch, 8 inch, 10 inch, 12inch, 14inch, 16 inch, 18 inch, 20 inch, 22 inch, 24 inch, 26inch, 28 inch, 30 inch, 32 inch,

34 inch, 36 inch, 38 inch, 40 inch, 42 inch, 44 inch, 46 inch, 48 inch)

Thickness

1mm~220mm

(SCH5 ,SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS)

Length

6m-12m,or as required

Outside Coating

Anti-rust oil, black painting.

Epoxy Coating according to AWWA C-210

Bitumen Coating according to DIN30672, BS534

Coal- Tar Enamel Coating according to AWWA C-203

3 Layer polyethylene Coating according to DIN30670

3 Layer Polypropylene Coating according to DIN30678

Inside Coating

Epoxy lining according to AWWA C-210

Bitumen Lining according to DIN30673, BS534

Coal-Tar Enamel Lining according to AWWA C-203

Cement Mortar Lining according to AWWA C-205, BS534

Testing and Inspection Reports

EN 10204 3.1, Mill TC EN 10204 3.1, Third Party Inspection Reports, Visual Inspection Reports,

Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Chemical and Mechanical Reports,

NABL Approved Lab

Price Term

EX-Work, FOB, CFR, CIF

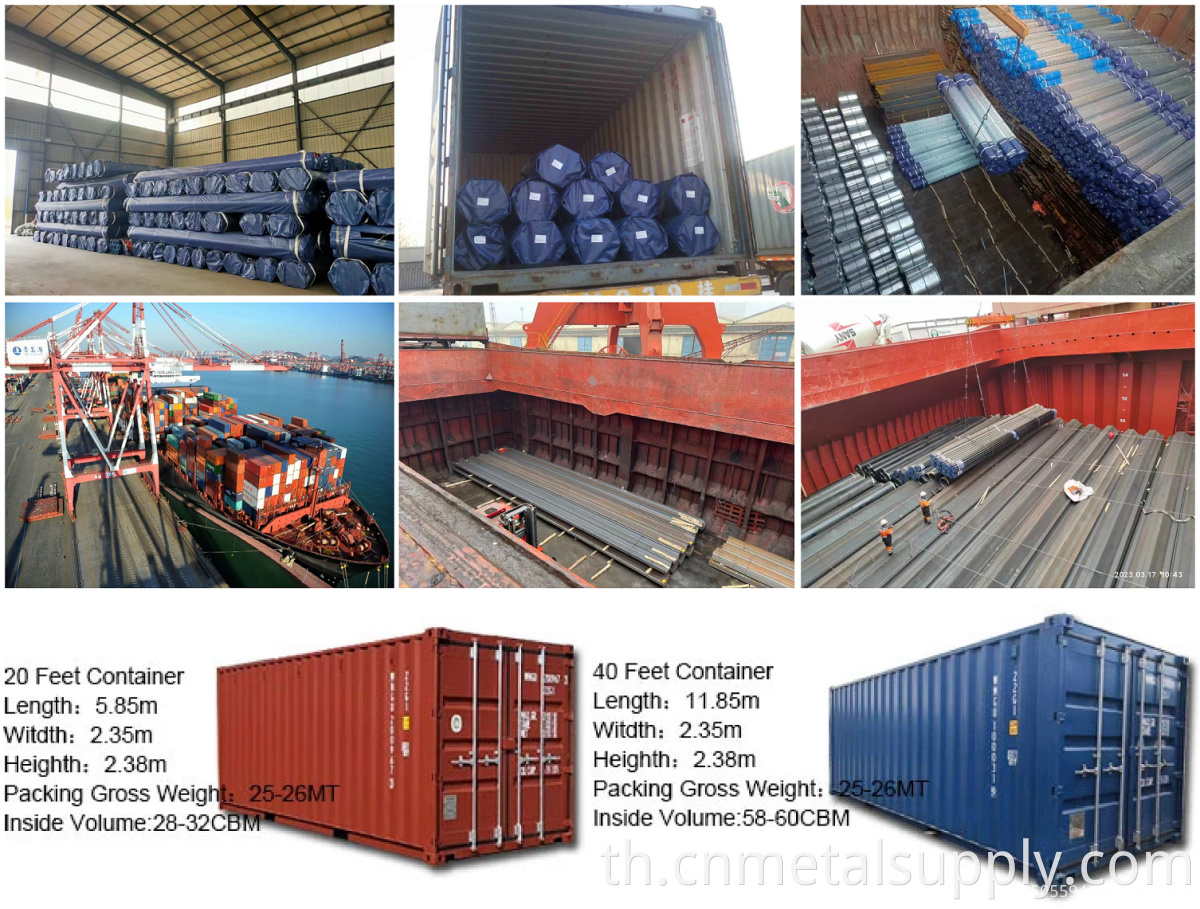

Package

Wooden box, bundled for export standard or as required

Payment Term

T/T, L/C,

Delivery Time

25-45 days (based on quantity) after receiving advanced payment

Application

a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)

b) Fluid, gas and oil transport

c) Pressure and heat transmission

d) Construction and ornament

e) Boiler heat exchangers

Standard

Steel grade

Chemical Compositions(%)

Mechanical Properties

C(Max)

Mn(Max)

P(Max)

S(Max)

Tensile strength(Min)

Yield strength(Min)

Psi X 1000

Mpa

Psi X 1000

Mpa

API 5L PIPE PSL 1

A25

CL I

0.21

0.60

0.030

0.030

45

310

25

172

CL II

0.21

0.60

0.030

0.030

A

0.22

0.90

0.030

0.030

48

331

30

207

B

0.26

1.20

0.030

0.030

60

414

35

241

X42

0.26

1.30

0.030

0.030

60

414

42

290

X46

0.26

1.40

0.030

0.030

63

434

46

317

X52

0.26

1.40

0.030

0.030

66

455

52

359

X56

0.26

1.40

0.030

0.030

71

490

56

386

X60

0.26

1.40

0.030

0.030

75

517

60

414

X65

0.26

1.45

0.030

0.030

77

531

65

448

X70

0.26

1.65

0.030

0.030

82

565

70

483

Standard

Steel grade

Chemical Composition(%)

Mechanical Properties

C

Mn

P

S

Tensile strength

Yield strength

(Max)

(Max)

(Max)

(Max)

Psi X 1000

Mpa

Psi X 1000

Mpa

API 5L PIPE PSL 2

B

0.22

1.20

0.025

0.015

60-110

414-758

35-65

241-448

X42

0.22

1.30

0.025

0.015

60-110

414-758

42-72

290-496

X46

0.22

1.40

0.025

0.015

63-110

434-758

46-76

317-524

X52

0.22

1.40

0.025

0.015

66-110

455-758

52-77

359-531

X56

0.22

1.40

0.025

0.015

71-110

490-758

56-79

386-544

X60

0.22

1.40

0.025

0.015

75-110

517-758

60-82

414-565

X65

0.22

1.45

0.025

0.015

77-110

531-758

65-82

448-565

X70

0.22

1.65

0.025

0.015

82-110

565-758

70-82

483-565

X80

0.22

1.90

0.025

0.015

90-110

621-827

80-102

552-705

Tolerance on dimension

OD Tolerance

WT Tolerance

A, B

X42 ~ X70

D<60.3mm

+0.41/-0.40mm

D<73mm

+20%/-12.5%

D<73mm

+15%/-12.5%

D>=60.3mm

+0.75/-0.40mm

D>=73mm

+15%/-12.5%

D>=73mm

+15%/-12.5%
